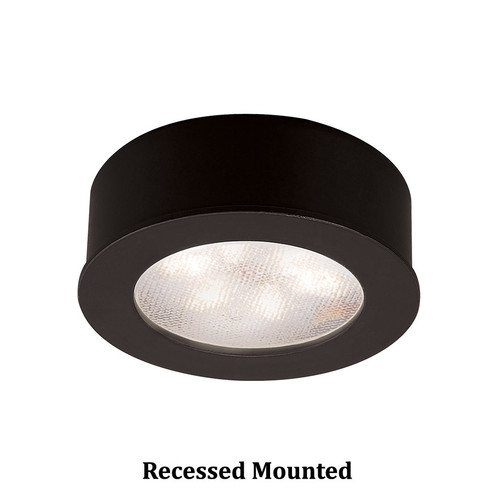

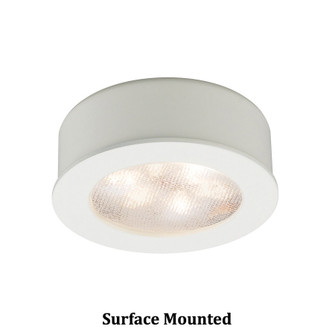

WAC Lighting LED Button Light by W.A.C. Lighting from the Led Button Light collection in Black finish Designed with a low-profile and shallow installation depth for tight spaces, the innovative LED87 Button Lights can be surface mounted or recessed for a built-in look within shelves, under and inside cabinets, curios and displays in fine residential and retail environments delivering strong light output with the latest in LED technology. Includes 72'' of wire, Button Lights can be wired in a series to one another up to the maximum load on the power supply used. Class II, 24V remote and plug-in transformers allow up to 20 Button Lights to be wired together. {ADDITIONAL FINISH INFORMATION: Black}
Characteristics and Features
FAMILY:
LED BUTTON LIGHT
STANDARD STYLE:
CONTEMPORARY MODERN
IMAGE INFO:
ACTUAL
CRI:
85
LIGHT OUTPUT:
180.00LM
LIGHT SOURCE:
LED
MATERIAL:
DIE-CAST ALUMINUM FIXTURE STAMPED STEEL HOUSING FOR SURFACE MOUNT
RATED AVERAGE LIFE:
70000H
UL LISTED:
UL CUL
UL RATING:
UL CUL
Dimensions & Measurements
HEIGHT:
0.88
HEIGHT RANGE:
0-15''
WIDTH:
2.25
WIDTH RANGE:
0-15''
EXTENSION:
2.25
Electrical Specifications
NUMBER OF BULBS:
1
BULB TYPE:
MODULE
BULB BASE:
LED MODULE
VOLTAGE:
24.00
MAX WATTAGE:
4.80
Included Components
Warranty and Product Information
MANUFACTURER WARRANTY:
5 YEAR FUNCTIONAL 2 YEAR FINISH
PARTS DIAGRAM:
CLICK HERE
Product Availability
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
QUANTITY AVAILABLE AT MANUFACTURER:
2173
Shipping Information
SHIP WEIGHT:
0.34LB
BOX SIZE:
3.23 X 1.85 X 4.06
